Supermicro

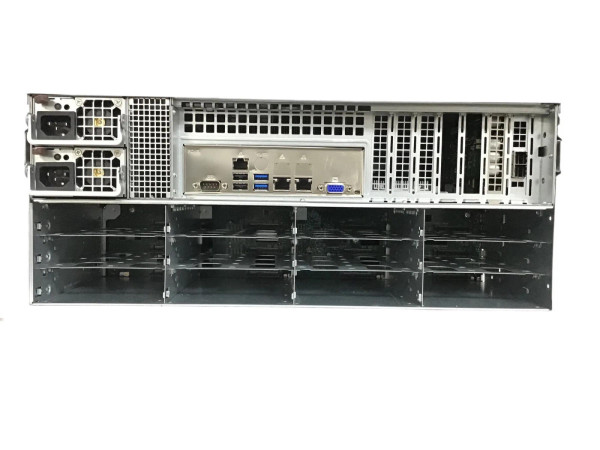

UXP X10DRH-iT 4U 36 Bay 9361-8i 2x E5-2695 V4 256GB-512GB

Name: UXP X10DRH-iT 4U 36 Bay 9361-8i 2x E5-2695 V4 256GB-512GB
Brand: Supermicro
Price: 2215.95 USD
Availability: InStock

No reviews yet

Availability: Usually ships within 3-5 business days

Shipping: $45.00 (Fixed Shipping Cost)

Condition: Refurbished

Brand: Supermicro

Model: SSG-6048R-E1CR36L

Type: Storage Server

$2,215.95 - $3,880.75

PRODUCT DESCRIPTION

The SuperStorage 6048R-E1CR36L is a powerful dual socket R3 server that can handle the Intel® Xeon® processor E5-2600 v4†/ v3 family with ease.
It supports QPI up to 9.6GT/s and can handle up to 2TB† ECC 3DS LRDIMM at a blazing fast DDR4-2400†MHz speed across 16 DIMM slots.
and 1 PCI-E 3.0 x16 and 6 PCI-E 3.0 x8 expansion slots. (slot 1 & 2 occupied by controller and JBOD expansion port)
Dual 10GBase-T LAN w/ Intel® X540 ensures lightning-fast connectivity.
It also features 36x 3.5" hot-swap drive bays (24 front + 12 rear) with 32x 3.5" hot-swap SAS3/SATA3 drive bays and 4x NVMe hybrid drive bays (SAS3/SATA3/NVMe*).
The server uses SAS3 via Broadcom 3008 controller and IT mode and has 2x 2.5" optional hot-swap SATA drive bays (rear) and 4x 2.5" internal fixed drive bays.
It also supports IPMI 2.0/KVM over LAN/Media over LAN for remote management. Lastly, there are 7x 80mm middle cooling fans and 1280W redundant power supplies platinum level (94%).

CONFIGURATION

CPU	2x Xeon E5-2695 V4 2.1GHz 18-Core
Memory	Option -256GB DDR4 -512GB DDR4
Hard Drives	Purchase Hard Drive/SSD Through Our Store
Controllers	1x 9361-8i

Secondary Chassis/Motherboard Specs

Server Chassis/Case	SSG-6048R-E1CR36L
Motherboard	X10DRH-iT * Integrated IPMI 2.0 Management
PCI-Expansions slots	Low Profile 1 PCI-E 3.0 x16 slot, 6 PCI-E 3.0 x8 slot
Front Bays	4U 36x 3.5" Drive Bays
Caddies Included	Purchase separately
Power	2
Mounting	Rails Option -No Rails -With Rails
Warranty	60day Seller Warranty

OFFICIAL Supermicro SSG-6048R-E1CR36L SPECIFICATIONS

Feature	Technical specification
Product SKUs
SSG-6048R-E1CR36L	SuperStorage 6048R-E1CR36L (Black)
Motherboard	Super X10DRH-iT
Processor/Cache
CPU	Intel® Xeon® processor E5-2600 v4/ v3 family (up to 145W TDP) Dual Socket R3 (LGA 2011)
Cores / Cache	Up to 22 Cores^† / Up to 55MB^† Cache
System Bus	QPI up to 9.6 GT/s
Note	^† BIOS version 2.0 or above is required
System Memory
Memory Capacity	16x 288-pin DDR4 DIMM slots Up to 2TB^† ECC 3DS LRDIMM, 512 ECC RDIMM
Memory Type	2400^†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	RDIMM: 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors
On-Board Devices
Chipset	Intel® C612 chipset
SAS	SAS3 (12Gbps) via Broadcom 3008 IT mode firmware
SATA	SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Network Controllers	Intel® X540 Dual Port 10GbE Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Realtek RTL8201N PHY (dedicated IPMI)
Graphics	ASPEED AST2400 BMC
Input / Output
LAN	2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 ports (rear) 2 USB 2.0 ports (rear) 1 Type A
VGA	1 VGA port
Serial Port / Header	1 Fast UART 16550 port / 1 Header
Chassis
Form Factor	4U Rackmount
Model	CSE-847BE1C-R1K28LPB
Dimensions and Weight
Width	17.2" (437mm)
Height	7" (178mm)
Depth	27.5" (699mm)
Weight	Gross Weight: 102.5 lbs (46.4 kg) Net Weight: 65.5 lbs (29.7 kg)
Available Colors	Black
Front Panel
Buttons	Power On/Off button System Reset button
LEDs	Power status LED Hard drive activity LED 2 Network activity LEDs System Information LED Power fail LED
Expansion Slots
PCI-Express	1 PCI-E 3.0 x16 slot 6 PCI-E 3.0 x8 slots Slot 1 & 2 occupied by controller and JBOD Expansion Port
Drive Bays
Hot-swap	36x 3.5" Hot-swap SAS3/SATA3 drive bays Double-sided: 24 front + 12 rear drive bays
Optional	2x 2.5" Hot-swap SATA drive bays (rear) Fixed internal Drive Bracket supports 1x 3.5 or 2x 2.5" devices
Backplane	SAS3/SATA3 single expander per backplane
System Cooling
Fans	7x 80mm middle cooling fans Redundant cooling
Power Supply with Digital Switching Control & PMBus 1.2
1280W High-Efficiency (95%+) power supply
AC Input	1000W Output @ 100-140V, 12-8A, 50-60Hz 1280W Output @ 180-240V, 8-6A, 50-60Hz
DC Output	1000W: +12V/83A; +5Vsb/4A 1280W: +12V/106.7A, +5Vsb/4A
Certification	80 Plus Platinum Certified
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 PCI 2.2 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3 UEFI
Operating Environment / Compliance
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

variant 9x
JLP 04/09/2026
