Supermicro

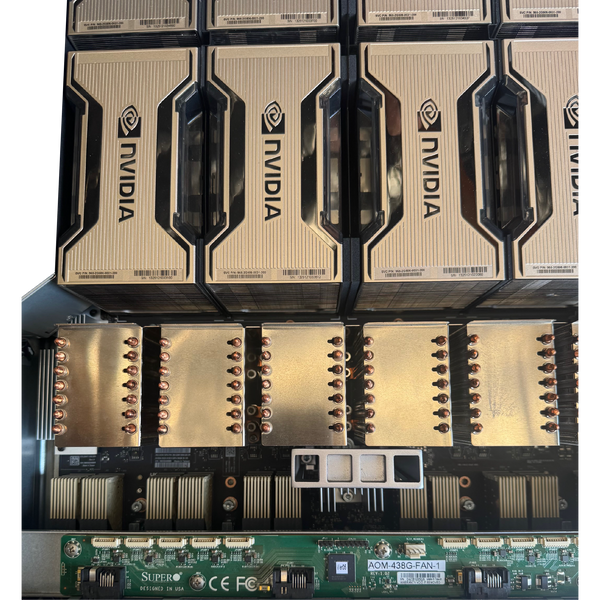

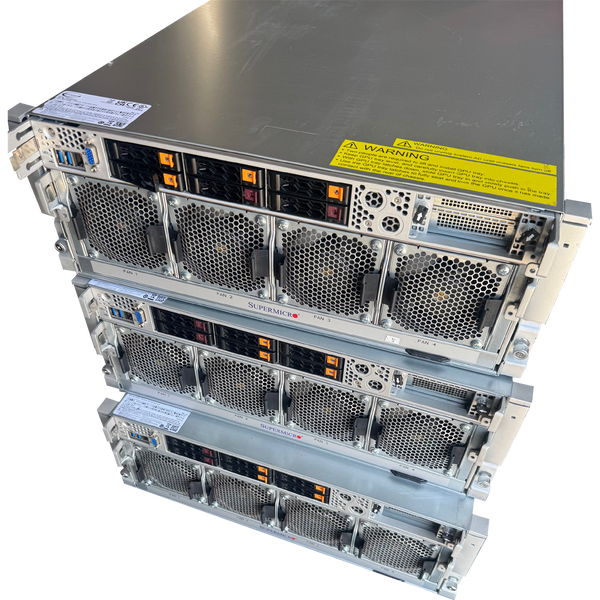

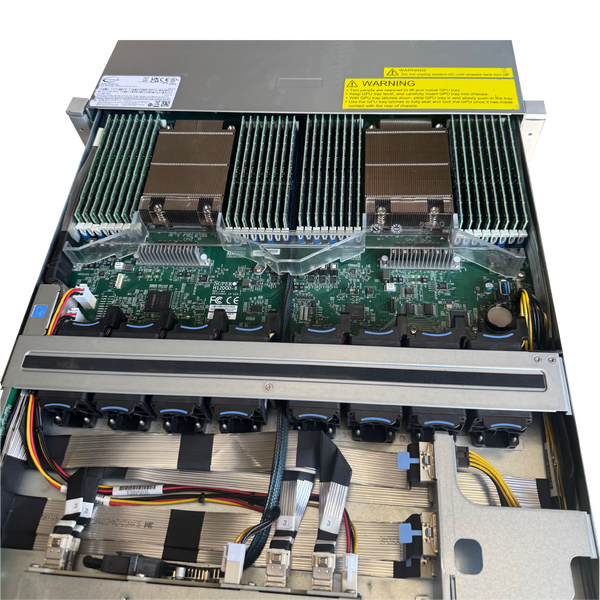

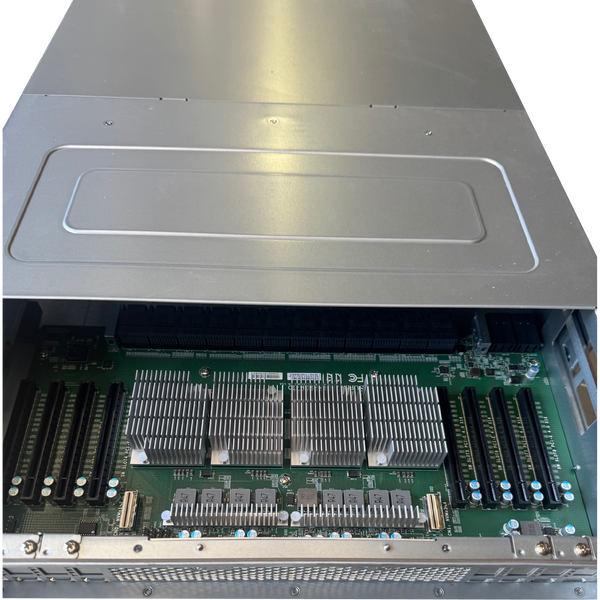

Supermicro NVIDIA GPU server 8x A100 80GB SXM4 with Custom Configuration 1 year warranty

Name: Supermicro NVIDIA GPU server 8x A100 80GB SXM4 with Custom Configuration 1 year warranty
Brand: Supermicro
SKU: 4U-H12dg0-8xV10
Availability: OutOfStock

No reviews yet

Product Code: 4U-H12dg0-8xV10

Availability: Usually ships within 3-5 business days

Condition: Refurbished

Brand: Supermicro

Model: GPU A+ Server AS -4124GO-NART

Type: Server

Warranty: 1 year warranty through this add only

Freight shipping only. Contact for quote at 877-864-9123

PRODUCT DESCRIPTION

This system fully supports NVIDIA® HGX™ with 8 powerful GPUs.
Experience the highest GPU communication capabilities with NVIDIA® NVLINK™ v3.0 and NVIDIA® NVSwitch™ technology.
Equipped with NICs for GPUDirect RDMA, ensuring a 1:1 GPU ratio for optimal performance. -
It is designed to support HGX A100 8-GPU configurations with either 40GB (HBM2) or 80GB (HBM2e) memory.
Powered by dual AMD EPYC™ 7003/7002 Series processors, this system delivers exceptional processing power. (Note: The latest AMD EPYC™ 7003 Series Processor featuring AMD 3D V-Cache™ Technology requires a BIOS version of 2.3 or newer.)
Boasting a robust 8TB of registered ECC DDR4 3200MHz SDRAM across 32 DIMMs for unparalleled reliability and speed.
Offers 8 PCIe 4.0 x16 slots via a PCIe switch, maximizing expansion capabilities.
Includes 1 PCIe 4.0 x16 low-profile and 1 PCIe 4.0 x8 low-profile slot through CPUs for versatile connectivity options.
Fully supports AIOM (Add-In-Of-Modularity) for enhanced modularity.
Features 6 hot-swappable 2.5" NVMe drive bays (4 through PCIe switch, 2 through CPU) for seamless upgrades and maintenance.
Accommodates up to 10 U.2 NVMe 2.5" drives with the option to add 4 additional drive bays at the rear of the system, providing extensive storage flexibility.

CONFIGURATION

CPU	Custom Configuration
Memory	512GB DDR4
Hard Drive	Custom Configuration
Controllers	None
OB NIC	2x RJ45

Secondary Chassis/Motherboard Specs

Server Chassis/Case	GPU A+ Server AS -4124GO-NART
Motherboard	H12DGO-6
Front Bays	6x 2.5
Backplane	n/a
PCI-Expansions slots	n/a
Caddies	6x 2.5" Supermicro caddy
Power	4x Redundant power supplies
Mounting	No Rail Kit
Warranty	1 year warranty Seller Warranty

OFFICIAL GPU A+ Server AS -4124GO-NART SPECIFICATIONS

Product SKUs	A+ Server AS -4124GO-NART
Motherboard	Super H12DGO-6
Processor/Cache
CPU	Dual SP3 AMD EPYC™ 7002/7003 Series Processors
Note	Supports up to 280W TDP CPUs (Air Cooled)
Max GPU Count	8 onboard GPUs
Supported GPU	NVIDIA SXM: HGX A100 8-GPU (80GB)
Certification
Memory	Slot Count: 32 DIMM slots View Memory Option
SATA	SATA (6Gbps)
Chipset	System on Chip
Network Connectivity	Ethernet
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports(front)
Video	1 VGA port(Front)
BIOS Type	AMI 256MB SPI Flash ROM
Software	Supermicro Server Manager (SSM) Supermicro Power Manager (SPM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) KVM with dedicated LAN IPMI 2.0 Watch Dog
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Form Factor	4U Rackmount
Model	CSE-438G
Height	6.9" (174 mm)
Width	17.6" (446 mm)
Depth	35.4" (900 mm)
Package	29.5" (H) x 27.4" (W) x 44.9" (D)
Weight	Gross Weight: 225 lbs (102.1 kg) Net Weight: 166 lbs (75.3 kg)
Available Color	Black Front & Silver Body
PCI-Express (PCIe) Configuration	Default 1 PCIe 4.0 x16 (in x16) LP slot 1 PCIe 4.0 x8 (in x8) LP slot 8 PCIe 4.0 x16 (in x16) via PCIe switch slots View AOC Options
Drive Bays Configuration	Default: Total 6 bays 6 front hot-swap 2.5" NVMe drive bays Option A: Total 10 bays 6 front hot-swap 2.5" NVMe drive bays 4 rear hot-swap 2.5" NVMe* drive bays (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) View NVMe Options View Drive Options
Fans	4 hot-swap 11.5K RPM heavy duty Fan(s)
Power Supply	4x 2200W Redundant (3 + 1) Platinum Level (94%) power supplies
Dimension (WxHxL)	106.5 x 82.4 x 203.5 mm
Input	1200W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 2000W: 180-220Vac (UL/CUL only) 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 200-230Vac / 50-60Hz 1980W: 220-230Vac 2200W: 220-240Vac (UL/cUL only) 2200W: 220-240Vac / 50-60Hz (For UL/cUL Only) 2090W: 230-240Vac 2090W: 230-240Vdc / 50-60Hz (for CQC only) 2090W: 230-240Vac / 50-60Hz (for TUV/CB)
+12V	Max: 41.67A (100Vac-240Vac) Max: 10A / Min: 9.5A (200Vac-220Vac) (CQC only) Max: 10A / Min: 9.8A (220Vac-230Vac) (CQC only) Max: 10A / Min: 9.8A (230Vdc-240Vdc) (CQC only) Max: 10A / Min: 9.8A (230Vac-240Vac) (CQC only)
12V SB	Max: 3A
Output Type	Backplanes (connector)
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

SKU: 4U-H12dg0-8xV10 | 616902 | 616903

JAA 06/18/2025
