Supermicro

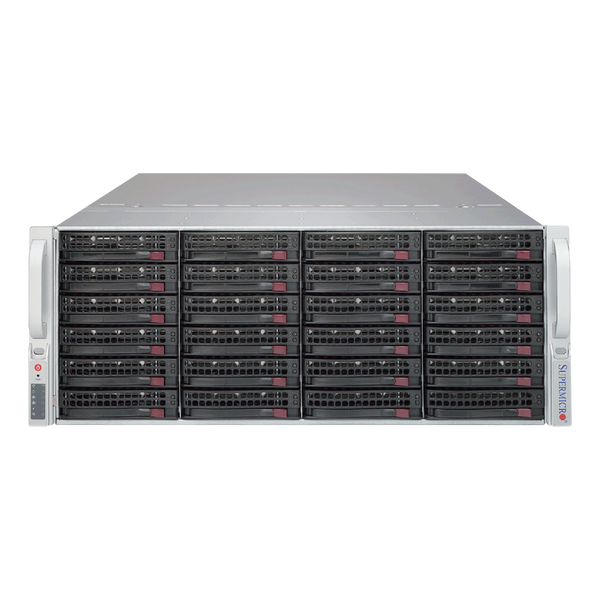

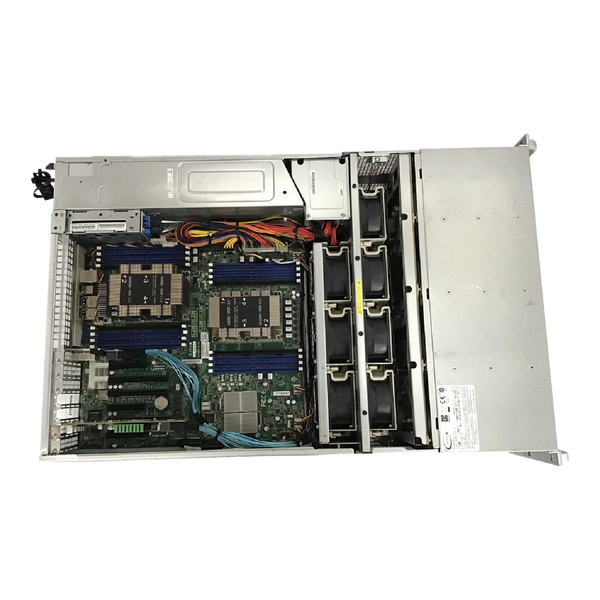

4U 36 Bay SAS3 UNRAID Server Skylake 32 Cores 64GB RAM DDR4
Product Code:
431105-4U-X11DPH-T-36BL-S3-2PS
Availability:
Usually ships within 3-5 business days
Shipping:
$100.00 (Fixed Shipping Cost)
Condition:
Refurbished
Brand:
Supermicro
Model:
SSG-6049P-E1CR36L
Motherboard:
X11DPH-T
Form Factor:
Rack-Mountable 4U
Freight shipping only. Contact for quote at 877-864-9123
PRODUCT DESCRIPTION
The SuperStorage 6049P-E1CR36L is a powerful server that comes with Dual Socket P support for 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake). It has 16 DIMMs that can support up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM. The server also supports Intel® Optane™ DCPMM and has 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 expansion slots (slot 2 & 3 occupied by controller and JBOD expansion port).
SuperStorage 6049P-E1CR36L
- It has 36 hot-swappable 3.5" SAS3/SATA3 drive bays, which includes 4 optional NVMe drives, and 2 hot-swappable 2.5" SATA3 drive bays (rear), and 2 M.2 NVMe, expander-based backplane.
- The server comes with server remote management features like IPMI 2.0/KVM over LAN/Media over LAN.
- It has 3 hot-swappable 8cm redundant PWM cooling fans and 2 hot-swappable 8cm rear exhaust PWM fans.
- It is powered by 1200W redundant power supplies, which are Titanium Level (96%).
CONFIGURATION
| CPU | 2x Xeon Gold 6130 2GHz 16 cores Skylake (total 32Cores) |
| Memory | 64GB DDR4 ECC REG RAM Kit |
| Hard Drive | None |
| Controllers | 1x AOC-S3008L-L8e HBA 12Gb/s and AOM-SAS3-8i8E-LP Installed for external JBOD |
| OB NIC | Integrated Dual LAN with 10GBase-T with Intel® X722 + X557 |
Secondary Chassis/Motherboard Specs
| Server Chassis/Case | SSG-6049P-E1CR36L |
| Motherboard | X11DPH-T |
| Management | * Integrated IPMI 2.0 Management |
| Front Bays | 4U 36x 3.5" Drive Bays |
| Backplane |
BPN-SAS3-826EL1-N4 12-port 2U SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices BPN-SAS3-846EL1 24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD |
| PCI-Expansions slots |
3 PCI-E 3.0 x16 slot 4 PCI-E 3.0 x8 slots Slot 2 & 3 occupied by controller and JBOD Expansion Port |
| Caddies Included | Purchase separately |
| Power | 2 |
| Mounting | Supermicro Rev B Rail Kit 4U |
| Warranty | 90 Day Seller Warranty |
OFFICIAL SuperStorage 6049P-E1CR36L SPECIFICATIONS
| Product SKUs |
SSG-6049P-E1CR36L |
| Motherboard |
Super X11DPH-T |
| Processor/Cache |
|
| CPU |
Dual Socket P (LGA 3647) |
| Cores |
Up to 28 Cores Note:BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) |
| Memory Capacity |
|
| Memory Type |
2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
| Note |
2933MHz in two DIMMs per channel can be achieved by using memory |
| Chipset |
Intel® C622 chipset |
| SAS |
|
| SATA |
SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| Network Controllers |
Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557 |
| IPMI |
Support for Intelligent Platform Management Interface v.2.0 |
| Graphics |
ASPEED AST2500 BMC |
| LAN |
|
| USB |
|
| Serial Port / Header | 1 Fast UART 16550 port / 1 Header |
| BIOS Type | 256Mb AMI UEFI |
| Software |
Intel® Node Manager IPMI 2.0 NMI SPM, SUM SuperDoctor® 5 Watchdog |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Form Factor | 4U Rackmount |
| Model |
CSE-847BE1C4-R1K23LPB |
| Width | 17.2" (437mm) |
| Height | 7" (178mm) |
| Depth | 27.5" (699mm) |
| Weight | Gross Weight: 102.5 lbs (46.4 kg) Net Weight: 65.5 lbs (29.7 kg) |
| Available Colors |
Black |
| Buttons | Power On/Off button System Reset button |
| LEDs | Power status LED Hard drive activity LED Network activity LEDs System Information LED Power fail LED |
| Expansion Slots |
PCI-Express
|
| Hot-swap |
36 Hot-swap 3.5" SAS3/SATA3 drive bays 2 Hot-swap 2.5" SATA3 drive bays (rear) |
| Optional |
|
| Backplane |
SAS3/SATA3 single expander per backplane |
| Fans |
|
| Power Supply (76mm Width) |
1200W Redundant Power Supplies with PMBus |
| Total Output Power | 1000W/1200W |
| Dimension (W x H x L) |
76 x 40 x 336 mm |
| Input | 100-127Vac / 15-12A / 50-60Hz 200-240Vac / 8.5-7A / 50-60Hz 200-240Vdc / 8.5-7A (for CCC only) |
| +12V |
Max: 83A / Min: 0A (100-127Vac) Max: 100A / Min: 0A (200-240Vac) Max: 100A / Min: 0A (200-240Vdc) |
| +5Vsb |
Max: 4A / Min: 0A |
| Output Type |
19 Pairs Gold Finger Connector |
| Certification | 80 Plus Titanium Level |
| RoHS |
RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
SKU: 431105-4U-X11DPH-T-36BL-S3-2PS
JLP 02/18/2026
