Supermicro

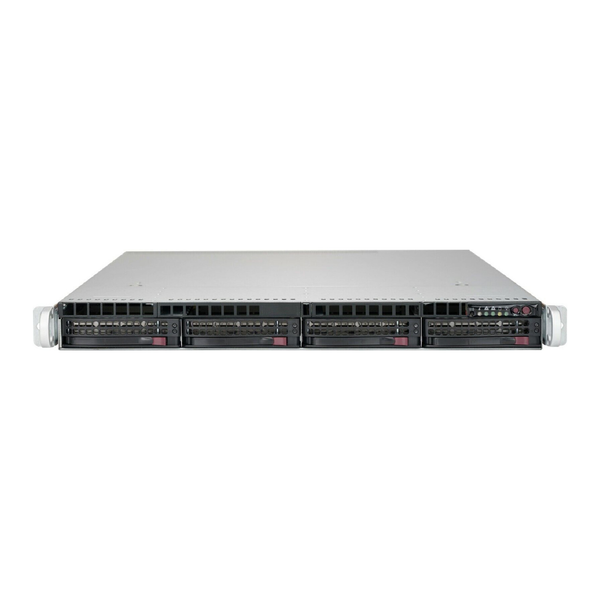

Supermicro 1U Server 4-Bay LFF with Configuration Options
Product Code:
1U-X11DPU-4BL-NVME-4x10GbaseT-2PS
Availability:
Usually ships within 3-5 business days
Shipping:
$65.00 (Fixed Shipping Cost)
Condition:
Refurbished
Brand:
Supermicro
Type:
Server
Model:
SYS-6019U-TN4R4T
Form Factor:
Rack-Mountable 1U
$916.00 - $1,719.00
PRODUCT DESCRIPTION

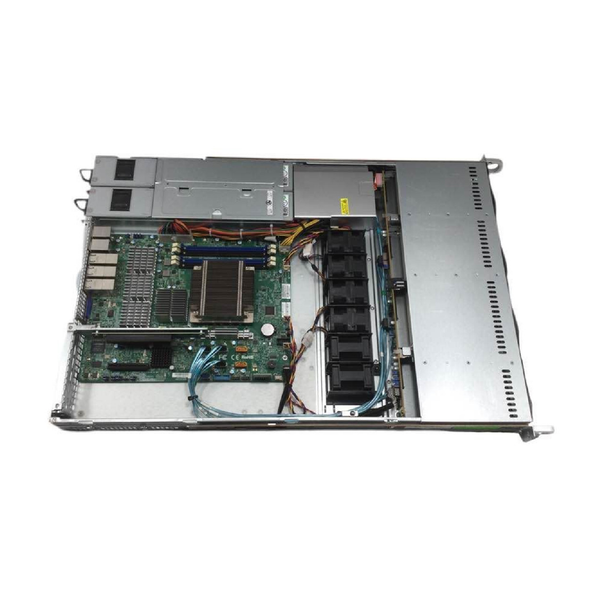

This listing is for a Supermicro SuperServer 6019U-TN4R4T. The Server was in a production facility with IBM softlayer until it was decommissioned. The server has been Reconfigured and the specs upgraded.
- The Dual Socket P (LGA 3647) unequivocally supports 2nd Gen Intel® Xeon® Scalable processors, particularly the Cascade Lake/Skylake models.
- This system supports 24 DIMMs with up to 6TB of 3DS ECC DDR4-2933MHz memory. It is compatible with Intel® Optane™ DCPMM.
- The 2 PCI-E boasts 3.0 x16 FH slots measuring 10.5" L, along with 3.0 x8 LP slots consisting of 1 LP and 1 internal LP.
- This device boasts four high-speed Ethernet ports that confidently support 10GBase-T connections.
- This system has 4 hot-swappable drive bays, 4 hybrid ports for NVMe/SATA3, 2 internal M.2 ports (1 SATA3 and 1 NVMe), and an optional extra M.2 NVMe port with SATA3 ports.
- The package includes eight heavy-duty fans with the optimal fan speed control.
It is powered by 750W redundant power supplies available with a platinum level efficiency rating of 94% or higher.
Notes: *OEM System BIOS upgradeable up to 3.5. and cannot be upgraded beyond that. *IPMI updated to the 1.73 and cannot be upgraded beyond that
CONFIGURATION
| CPU | Configuration Options |
| Memory | Configuration Options |
| Hard Drives | Configuration Options |
| Controllers | Configuration Options |
| OB NIC | 4x 10GBase-T ports via AOC-UR-i4XT (pre-installed) |
Secondary Chassis/Motherboard Specs
| Server Chassis/Case | 1U-X11DPU-4BL-NVME-4x10GbaseT-2PS |
| Motherboard | X11DPU |
| Backplane |
4x SAS/SATA/NVME Backplane |
| Motherboard PCI slots | 3 Slot |
| Front Bays | 3.5" Supermicro |
| Caddies Included | 4x 2.5" to 3.5" Caddy with Adapters |
| PSU Slots | Dual PSU Slots |
| Power | 2 |
| Mounting | Supermicro |
| Warranty | 90 Day Seller Warranty |
OFFICIAL Supermicro 6019U-TN4R4T SPECIFICATIONS
| Feature | Technical specification |
|---|---|
| Product SKUs | |
| SYS-6019U-TN4R4T |
SuperServer 6019U-TN4R4T (Black) |
| Motherboard | |
| Super X11DPU |
|
| Processor/Cache | |
| CPU | Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s Support CPU TDP 70-205W |
| Cores | Up to 28 Cores |
| Note | BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R). Extended thermal solutions may be required to support CPUs higher than 165W TDP. |
| System Memory |
|
| Memory Capacity |
24 DIMM slots Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM Supports Intel® Optane™ DCPMM |
| Memory Type |
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM 2666 ECC DDR4 NVDIMM |
| Note | 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro Cascade Lake only. |
| On-Board Devices |
|
| Chipset |
Intel® C621 chipset |
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| Network Connectivity |
4x 10GBase-T ports via AOC-UR-i4XT (Intel® X540 10GBase-T) |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | ASPEED AST2500 BMC |
| Input / Output |
|
| SATA/NVMe |
4 SATA3 (6Gbps)/NVMe ports |
| LAN | 4 RJ45 10GBase-T Ethernet ports 1 RJ45 Dedicated IPMI LAN port |
| USB |
3 USB 3.0 ports (2 rear, 1 Type A) |
| Video | 2 VGA ports (1 rear, 1 onboard) |
| Serial Port |
1 Serial header |
| DOM |
2 SATA DOM (Disk on Module) support with embedded power |
| System BIOS | |
| BIOS Type |
AMI 32Mb SPI Flash ROM |
| Management |
|
| Software |
|
| Power Configurations |
ACPI Power Management |
| PC Health Monitoring | |
| CPU |
Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature |
Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
| Form Factor | 1U Rackmount |
| Model | CSE-819UTS-R751P-T |
| Dimensions and Weight | |
| Height | 1.7" (43mm) |
| Width |
17.2" (437mm) |
| Depth | 29.7" (754mm) |
| Weight | Net Weight: 26 lbs (11.8 kg) Gross Weight: 41 lbs (18.6 kg) |
| Available Color | Black |
| Front Panel | |
| Buttons | Power On/Off button System Reset button |
| LEDs |
Power LED Hard drive activity LED Network activity LEDs System Overheat LED / Fan fail LED / UID LED |
| Expansion Slots |
PCI-Express
|
| Drive Bays / Storage | |
| Hot-swap |
4 Hot-swap 3.5" drive bays: 4 NVMe/SATA3 hybrid ports (optional SAS3 via AOC) |
| M.2 |
|
| System Cooling | |
| Fans |
8 Heavy duty fans with optimal fan speed control |
| Air Shroud |
1 Air Shroud |
| Power Supply | |
| 750W Redundant AC-DC Power Supplies, +12V/+12Vsb output | |
| AC Input |
100-127Vac, 50-60Hz 200-240Vac, 50-60Hz |
| +12V |
Max: 62.5A & Min: 0A (100Vac-127Vac) Max: 62.5A & Min: 0A (200Vac-240Vac) |
| 12V SB |
Max: 2.1A Min: 0A |
| Certification | 80 Plus Platinum Level |
| Operating Environment | |
| RoHS | RoHS Compliant |
| Environmental Spec. |
|
SKU: 506620 | 507211 | 509307 | 510204 | 510207 | 533804 | 618103
JR 02/26/2025 | updated JAA 06/30/2025
