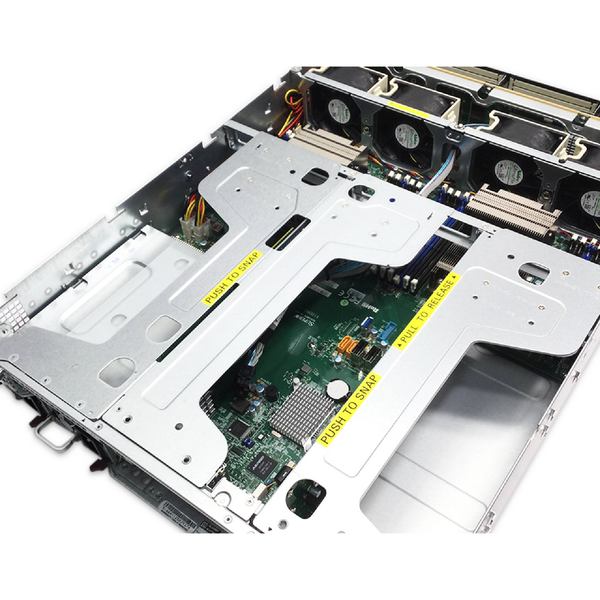

Supermicro 2U 12 Bay SAS3 Server 6028U-TR4T+ W/ X10DRU-i+
Availability:
Usually ships within 3-5 business days
Shipping:
$85.00 (Fixed Shipping Cost)
Condition:
Refurbished
Brand:
Supermicro
Type:
Server
Model:
6028U-TR4T+
Interface:
SAS
$290.00 - $1,406.00
PRODUCT DESCRIPTION
- The Dual socket R3 (LGA 2011) is designed to support Intel® Xeon® processor E5-2600 v4/ v3 family with QPI of up to 9.6GT/s.
- With a maximum capacity of 3TB† ECC 3DS LRDIMM, up to DDR4-2400†MHz, and 24 DIMM slots, this server packs a powerful punch.
- It comes equipped with one 1 PCI-E 3.0 x16 slot (FH, 10.5" L) and four 6 PCI-E 3.0 x8 slots (4 FH, 10.5" L, 1 LP, 1 Internal LP) to handle even the most demanding workloads.
- The server is equipped with 4x 10GBase-T ports to ensure fast and reliable connectivity.
- With 12 hot-swap 3.5" drive bays, 10 SATA3 ports by default, and support for 12 SAS3, this server offers ample storage options. It also has an optional 2 hot-swap 2.5" rear drive bays for SSDs.
- The 4 heavy-duty fans come with optimal fan speed control to keep the server running cool, even under heavy loads.
- Boasting a 1000W high-efficiency (96%) redundant PSU with a titanium level, this server is a reliable choice for any enterprise.
CONFIGURATION
| CPU | :Configuation Options |
| Memory | :Configuration Options |
| Hard Drives | :None Installed |
| Controller | :Configuration Options |
| OnBoard NIC | : 4x 10GBase-T ports via AOC-2UR6-i4XT |
Secondary Chassis/Motherboard Specs
| Server Chassis/Case | :G-2U-X10DRU-I+-12BLS3-3xPCIeGPUx16 |
| Motherboard | :X10DRU-i+ Motherboard Bios Rev 3.2 (Capped) |
| Backplane | :BPN-SAS3-826EL1 SAS3 Expander Backplane |
| PCI-Expansions slots | :3x PCI-E X16 (FHHL) Slots, 2x X8 LP Slots |
| Caddies Included | :12x 3.5" LFF Caddies |
| Rear Bays | :Bay 2.5 |
| PSU Slots | :Dual PSU Slots |
| Power Supply | :2x 1000Watt PWS-1K02A-1R |
| Rail Kit | :Generic Rail Kit |
| Warranty | :60 Day Seller Warranty |
OFFICIAL SYS-6028U-TR4T+ SPECIFICATIONS
| Product SKUs | |
| SYS-6028U-TR4T+ |
SuperServer 6028U-TR4T+ (Black) |
| Motherboard |
Super X10DRU-i+ |
| Processor/Cache | |
| CPU | Intel® Xeon® processor E5-2600 v4/ v3 family (up to 160W TDP) * Dual Socket R3 (LGA 2011) |
| Cores / Cache |
Up to 22 Cores / Up to 55MB Cache |
| System Bus |
QPI up to 9.6 GT/s |
| Note | BIOS version 2.0 or above is required |
| System Memory | |
| Memory Capacity | 24x 288-pin DDR4 DIMM slots Up to 3TB ECC 3DS LRDIMM, 1.5TB ECC RDIMM/LRDIMM |
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 2666/2400 ECC DDR4 NVDIMM |
| DIMM Sizes |
|
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
| On-Board Devices | |
| Chipset | Intel® C612 chipset |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC |
| Network Connectivity | 4x 10GBase-T ports via AOC-2UR6-i4XT Intel® X540 10GBase-T 1x Realtek RTL8211E PHY (dedicated IPMI) |
| Graphics | ASPEED AST2400 BMC |
| Input / Output | |
| SATA | 10x SATA3 (6Gbps) ports |
| SAS | 12x SAS3 ports support via optional Add-on Card |
| LAN | 4x RJ45 10GBase-T LAN ports 1x RJ45 Dedicated IPMI LAN port |
| USB | 5x USB 3.0 ports (2 rear, 2 onboard header, 1 Type A) |
| Video | 1x VGA Connector |
| Serial Port / Header | 1x Serial header |
| DOM | 2x SuperDOM (Disk on Module) ports |
| System BIOS | |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features |
|
| Management | |
| Software | SuperDoctor® 5 Intel® Node Manager 3.0 Watch Dog NMI SUM and SSM Optional IPMI 1.5 / 2.0 |
| Power Configurations | ACPI Power Management Power-on mode for AC power recovery |
| Chassis | |
| Form Factor | 2U Rackmount |
| Model | CSE-829UAC-R1K02-T |
| Dimensions and Weight | |
| Width | 17.2" (437mm) |
| Height | 3.5" (89mm) |
| Depth | 28.46" (723mm) |
| Weight | Net Weight: 36 lbs (16.4 kg) Gross Weight: 72 lbs (32.7 kg) |
| Available Colors | Black |
| Front Panel | |
| Buttons | Power On/Off button System Reset button |
| LEDs | Power status LED HDD activity LED 2x Network activity LEDs System information (overheat/UID) LED |
| Expansion Slots | |
| PCI-Express | 1x PCI-E 3.0 x16 slot (FH, 10.5" L) 6x PCI-E 3.0 x8 slots (4x FH, 10.5" L, 1x LP, 1x Internal LP) (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers.) |
| Drive Bays | |
| Hot-swap | 12x Hot-swap 3.5" Drive Bays: 10x SATA3 ports by default Optional drive support: 12x SAS3 Note: optional storage card is required to support more than 10 drives. |
| Backplane | 2U SAS/SATA backplane |
| System Cooling | |
| Fans | 4x 8cm heavy duty PWM fans |
| Power Supply | |
| 1000W Redundant Power Supplies with PMBus | |
| Total Output Power | 800W: 100 – 127Vac 1000W: 200 – 240Vac 1000W: 200 – 240Vdc (for CCC only) |
| Dimension (W x H x L) |
73.5 x 40 x 203 mm |
| Input | 100-127Vac / 9.8 - 7A / 50-60Hz 200-240Vac / 7 - 5A / 50-60Hz 200-240Vdc / 7 - 5A (for CCC only) |
| +12V | Max: 66.7A / Min: 0A (100-127Vac) Max: 83A / Min: 0A (200-240Vac) Max: 83A / Min: 0A (200-240Vdc) |
| 12Vsb | Max: 2.1A / Min: 0A |
| Output Type | 25 Pairs Gold Finger Connector |
| Certification | 80 Plus Titanium Level |
| PC Health Monitoring | |
| Voltage | Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages. 5+1 Phase-switching voltage regulator |
| FAN | 8x 4-pin fan headers Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Support to monitor Supermicro AOC temperatures from IPMI or SD 5 Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8x Fan Connectors Thermal Monitor 2 (TM2) support PECI |
| LED | Memory DIMM ECC error LEDs CPU / System Overheat LED Suspend static indicator LED UID/Remote UID |
| Other Features | 4x 8-pin GPU power connectors Chassis intrusion detection Chassis intrusion header SDDC Support RoHS |
| Operating Environment / Compliance | |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 5°C to 40°C (41°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
SKU: 507803 | 508204 | 508503| 508511 | 508602 | 508604 | 510202 | 510211 | 510214 | 510309 | 510316 | 510706 | 512708
JAA 05/06/2024
Share:
Supermicro 2U 12 Bay SAS3 Server 6028U-TR4T+ W/ X10DRU-i+
$290.00 - $1,406.00
PRODUCT DESCRIPTION
- The Dual socket R3 (LGA 2011) is designed to support Intel® Xeon® processor E5-2600 v4/ v3 family with QPI of up to 9.6GT/s.
- With a maximum capacity of 3TB† ECC 3DS LRDIMM, up to DDR4-2400†MHz, and 24 DIMM slots, this server packs a powerful punch.
- It comes equipped with one 1 PCI-E 3.0 x16 slot (FH, 10.5" L) and four 6 PCI-E 3.0 x8 slots (4 FH, 10.5" L, 1 LP, 1 Internal LP) to handle even the most demanding workloads.
- The server is equipped with 4x 10GBase-T ports to ensure fast and reliable connectivity.
- With 12 hot-swap 3.5" drive bays, 10 SATA3 ports by default, and support for 12 SAS3, this server offers ample storage options. It also has an optional 2 hot-swap 2.5" rear drive bays for SSDs.
- The 4 heavy-duty fans come with optimal fan speed control to keep the server running cool, even under heavy loads.
- Boasting a 1000W high-efficiency (96%) redundant PSU with a titanium level, this server is a reliable choice for any enterprise.
CONFIGURATION
| CPU | :Configuation Options |
| Memory | :Configuration Options |
| Hard Drives | :None Installed |
| Controller | :Configuration Options |
| OnBoard NIC | : 4x 10GBase-T ports via AOC-2UR6-i4XT |
Secondary Chassis/Motherboard Specs
| Server Chassis/Case | :G-2U-X10DRU-I+-12BLS3-3xPCIeGPUx16 |
| Motherboard | :X10DRU-i+ Motherboard Bios Rev 3.2 (Capped) |
| Backplane | :BPN-SAS3-826EL1 SAS3 Expander Backplane |
| PCI-Expansions slots | :3x PCI-E X16 (FHHL) Slots, 2x X8 LP Slots |
| Caddies Included | :12x 3.5" LFF Caddies |
| Rear Bays | :Bay 2.5 |
| PSU Slots | :Dual PSU Slots |
| Power Supply | :2x 1000Watt PWS-1K02A-1R |
| Rail Kit | :Generic Rail Kit |
| Warranty | :60 Day Seller Warranty |
OFFICIAL SYS-6028U-TR4T+ SPECIFICATIONS
| Product SKUs | |
| SYS-6028U-TR4T+ |
SuperServer 6028U-TR4T+ (Black) |
| Motherboard |
Super X10DRU-i+ |
| Processor/Cache | |
| CPU | Intel® Xeon® processor E5-2600 v4/ v3 family (up to 160W TDP) * Dual Socket R3 (LGA 2011) |
| Cores / Cache |
Up to 22 Cores / Up to 55MB Cache |
| System Bus |
QPI up to 9.6 GT/s |
| Note | BIOS version 2.0 or above is required |
| System Memory | |
| Memory Capacity | 24x 288-pin DDR4 DIMM slots Up to 3TB ECC 3DS LRDIMM, 1.5TB ECC RDIMM/LRDIMM |
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 2666/2400 ECC DDR4 NVDIMM |
| DIMM Sizes |
|
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
| On-Board Devices | |
| Chipset | Intel® C612 chipset |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC |
| Network Connectivity | 4x 10GBase-T ports via AOC-2UR6-i4XT Intel® X540 10GBase-T 1x Realtek RTL8211E PHY (dedicated IPMI) |
| Graphics | ASPEED AST2400 BMC |
| Input / Output | |
| SATA | 10x SATA3 (6Gbps) ports |
| SAS | 12x SAS3 ports support via optional Add-on Card |
| LAN | 4x RJ45 10GBase-T LAN ports 1x RJ45 Dedicated IPMI LAN port |
| USB | 5x USB 3.0 ports (2 rear, 2 onboard header, 1 Type A) |
| Video | 1x VGA Connector |
| Serial Port / Header | 1x Serial header |
| DOM | 2x SuperDOM (Disk on Module) ports |
| System BIOS | |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features |
|
| Management | |
| Software | SuperDoctor® 5 Intel® Node Manager 3.0 Watch Dog NMI SUM and SSM Optional IPMI 1.5 / 2.0 |
| Power Configurations | ACPI Power Management Power-on mode for AC power recovery |
| Chassis | |
| Form Factor | 2U Rackmount |
| Model | CSE-829UAC-R1K02-T |
| Dimensions and Weight | |
| Width | 17.2" (437mm) |
| Height | 3.5" (89mm) |
| Depth | 28.46" (723mm) |
| Weight | Net Weight: 36 lbs (16.4 kg) Gross Weight: 72 lbs (32.7 kg) |
| Available Colors | Black |
| Front Panel | |
| Buttons | Power On/Off button System Reset button |
| LEDs | Power status LED HDD activity LED 2x Network activity LEDs System information (overheat/UID) LED |
| Expansion Slots | |
| PCI-Express | 1x PCI-E 3.0 x16 slot (FH, 10.5" L) 6x PCI-E 3.0 x8 slots (4x FH, 10.5" L, 1x LP, 1x Internal LP) (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers.) |
| Drive Bays | |
| Hot-swap | 12x Hot-swap 3.5" Drive Bays: 10x SATA3 ports by default Optional drive support: 12x SAS3 Note: optional storage card is required to support more than 10 drives. |
| Backplane | 2U SAS/SATA backplane |
| System Cooling | |
| Fans | 4x 8cm heavy duty PWM fans |
| Power Supply | |
| 1000W Redundant Power Supplies with PMBus | |
| Total Output Power | 800W: 100 – 127Vac 1000W: 200 – 240Vac 1000W: 200 – 240Vdc (for CCC only) |
| Dimension (W x H x L) |
73.5 x 40 x 203 mm |
| Input | 100-127Vac / 9.8 - 7A / 50-60Hz 200-240Vac / 7 - 5A / 50-60Hz 200-240Vdc / 7 - 5A (for CCC only) |
| +12V | Max: 66.7A / Min: 0A (100-127Vac) Max: 83A / Min: 0A (200-240Vac) Max: 83A / Min: 0A (200-240Vdc) |
| 12Vsb | Max: 2.1A / Min: 0A |
| Output Type | 25 Pairs Gold Finger Connector |
| Certification | 80 Plus Titanium Level |
| PC Health Monitoring | |
| Voltage | Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages. 5+1 Phase-switching voltage regulator |
| FAN | 8x 4-pin fan headers Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Support to monitor Supermicro AOC temperatures from IPMI or SD 5 Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8x Fan Connectors Thermal Monitor 2 (TM2) support PECI |
| LED | Memory DIMM ECC error LEDs CPU / System Overheat LED Suspend static indicator LED UID/Remote UID |
| Other Features | 4x 8-pin GPU power connectors Chassis intrusion detection Chassis intrusion header SDDC Support RoHS |
| Operating Environment / Compliance | |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 5°C to 40°C (41°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
SKU: 507803 | 508204 | 508503| 508511 | 508602 | 508604 | 510202 | 510211 | 510214 | 510309 | 510316 | 510706 | 512708
JAA 05/06/2024
