Configuration |
|
---|---|
CPU | Single Intel Xeon E5-2667 V3 3.2Ghz 8 cores |
Memory | 128GB DDR4 |
Hard Drives | 1x 480GB SSD 2.5" |
Controllers | Integrated Onboard SATA Controller |
OB NIC | * Integrated Onboard Dual 1GB Ethernet ports (2) |
Secondary Chassis/Motherboard Specs
Server Chassis/Case | SYS-1018GR-T |
Motherboard | X10SRG-F * Integrated IPMI 2.0 Management |
Backplane | BPN-SAS-118TQ 6-port 1U TQ (W/ AMI 9072) backplane, support up to 6x 2.5-inch SAS/SATA HDD/SSD |
PCI-Expansions slots | 2x PCI-E 3.0 x16 slots (support GPU/Xeon Phi cards) 1x PCI-E 3.0 x8 slot for I.B. card |
Front Bays | 6x 2.5" Drive Bays |
Caddies | 6x 2.5" Supermicro caddy.5" Caddy |
Power | Single Power Supply (1400 watt gold ) |

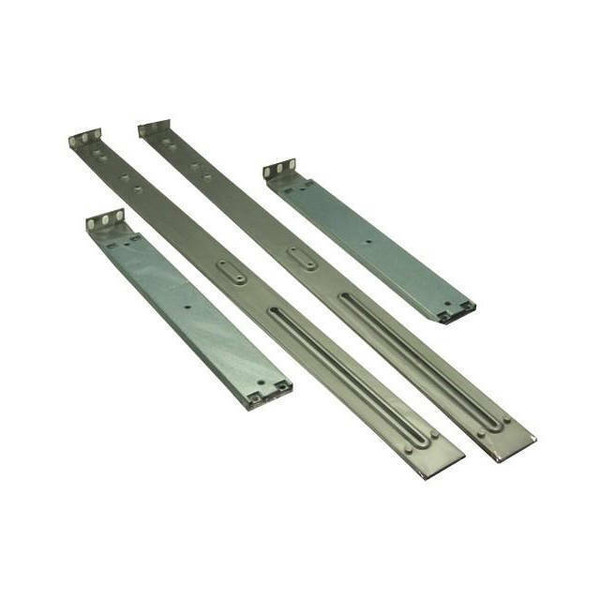

Mounting | Rail Kit 1U |
Warranty | 90 day Seller Warranty |
SKU: 508012 | 511403
JAA 05/08/2024
Feature | Technical specification |
---|---|
SYS-1018GR-T | SuperServer 1018GR-T (Black) |
Motherboard | Super X10SRG-F |
CPU |
Intel® Xeon® processor E5-2600 v4/ v3, E5-1600 v4/ v3 family (up to 145W TDP **) |
Core / Cache | Up to 22 Cores / Up to 55MB Cache |
Note |
BIOS version 2.0 or above is required. ** Motherboard supports this maximum TDP. Please verify your system can thermally support |
Memory Capacity | 8x 288-pin DDR4 DIMM slots Up to 1TB ECC 3DS LRDIMM Up to 512GB ECC LRDIMM Up to 512GB ECC RDIMM |
Memory Type | 2400/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs |
DIMM Sizes | 3DS LRDIMM: 128GB LRDIMM: 64GB, 32GB RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB |
Memory Voltage | 1.2 V |
Error Detection | Corrects single-bit errors |
Chipset | Intel® C612 chipset |
SATA | SATA3 (6Gbps) via C612 controller RAID 0, 1, 5, 10 support |
IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC |
Network Controllers | Intel® i350 Dual Port Gigabit Ethernet Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
Graphics | ASPEED AST2400 BMC |
SATA | 6x SATA3 (6Gbps) ports |
LAN | 2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port |
USB | 2x USB 3.0 ports (rear) |
Video | 1x VGA Connector |
Serial Port | 1x Serial header |
DOM | 2x DOM (Disk on Module) power connectors |
BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
BIOS Features | Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 2.7.1 UEFI 2.3.1 RTC (Real Time Clock) Wakeup |
Form Factor | 1U Rackmount |
Model | CSE-118GTS-1K43BP2 |
Height | 1.7" (43mm) |
Width | 17.2" (437mm) |
Depth | 28.5" (724mm) |
Weight | Net Weight: 28 lbs (12.70 kg) Gross Weight: 36 lbs (16.33 kg) |
Available Colors | Black |
Buttons | Power On/Off button System Reset button |
LEDs | Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED / Fan fail LED / UID LED |
Expansion Slots | PCI-Express 2x PCI-E 3.0 x16 slots (support GPU/Xeon Phi cards) 1x PCI-E 3.0 x8 slot for I.B. card UIO AOC Compatibility Matrix |
Hot-swap | 6x 2.5" Hot-swap drive bays |
Fans | 8x counter-rotating fans with optimal fan speed control |
Power Supply | 1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2 |
AC Voltage | 1200W: 100-140 V, 14.7-10.5A, 50-60 Hz 1400W: 180-240 V, 10.5-8.0A, 50-60 Hz |
+5V standby | 6 Amp |
+12V | 100 Amp/115 Vac 117 Amp/230 Vac |
With Power Distributor | +5V: 14 Amp |
Certification | 80 Plus Platinum Certified |
CPU | Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages. CPU Core 5-Phase-switching voltage regulator |
FAN | Total of eight 4-pin PWM fans 8x fans with tachometer monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control |
Temperature | Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8x Fan Connectors PSU I2C temperature sensing logic Thermal Monitor 2 (TM2) support PECI |
LED | Power Fail / Overheat LED Suspend-state Indicator LED UID LED |
Other Features | SDDC Support |
RoHS | RoHS Compliant |
Environmental Spec. |
Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
