Quanta

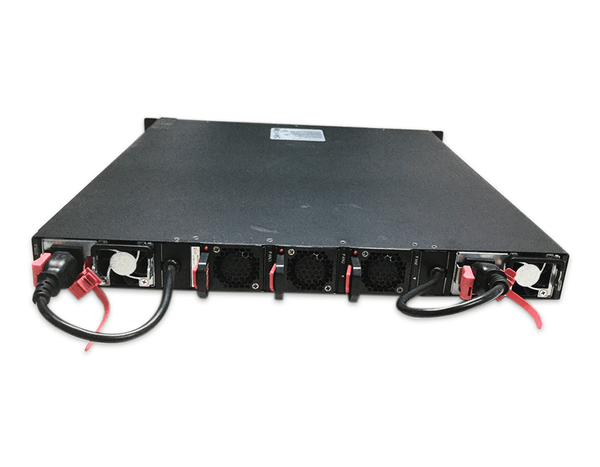

Quanta T5032-LY6 32X 40GBE QSFP+ Ethernet Switch 32G ONIE Open Network Linux PPC
Product Code:
1LY6BZZ0ST7
UPC:
884430103025
Availability:
Usually ships within two business days
Shipping:
$25.00 (Fixed Shipping Cost)
Condition:
Refurbished
Brand:
Quanta
No. of LAN Ports:
32
Ethernet Technology:
40 Gigabit Ethernet (10000-Mbit/s)
Type:
Ethernet Switch
$110.00
Quanta T5032-LY6 32X 40GBE QSFP+ Ethernet Switch 32G ONIE Open Network Linux PPC
Listing Specifications:
Condition - Clean Pulls Tested Working
Warranty- 30 Days DOA
Weight: 20.40lbs.
Physical ports
Port configuration
32 QSFP+ ports
Management Port
Out-of-band management port (RJ-45, 10/100/1000Base-T)
Console Port
1 (RJ-45)
USB
USB 2.0
Performance
Switching capacity
2560Gbps
Maximum forwarding rate
1904Mpps
Latency
<600ns
MAC
Unified Forwarding Table to dynamically allocate the L2/L3 tables
Major Components
ASIC
Broadcom StrataXGS Trident2
x86 CPU Module
CPU
Intel Atom Processors
Memory
4GB DDR3/ECC
Storage
32G SSD
CPU
CPU
NXP PPC P2020
Memory
2GB DDR3/ECC
Flash
128MB
Storage
8GB Micro SD
Mechanical
Dimension (HxWxD)
44x435x483mm
Weight
P2020: 9.93kg/ 21.87lbs (NET)
Rangeley: 9.82kg/ 21.63lbs (NET)
Environmental Specifications
Operating temperature
0~45℃
Operating humidity
90% maximum relative humidity
Electrical
Power requirement
100~240VAC, 50/60Hz
Power consumption
200 watts (L2 256B line rate; 10G-SR optics, 100% fan duty)
Safety
Safety
UL, cUL, CB, CCC
EMC
EMC
CE, FCC, VCCI, CCC
RoHS
RoHS
Reduction of Hazardous Substances (RoHS) 6
Share:
Quanta T5032-LY6 32X 40GBE QSFP+ Ethernet Switch 32G ONIE Open Network Linux PPC
Listing Specifications:
Condition - Clean Pulls Tested Working
Warranty- 30 Days DOA
Weight: 20.40lbs.
Physical ports
Port configuration
32 QSFP+ ports
Management Port
Out-of-band management port (RJ-45, 10/100/1000Base-T)
Console Port
1 (RJ-45)
USB
USB 2.0
Performance
Switching capacity
2560Gbps
Maximum forwarding rate
1904Mpps
Latency
<600ns
MAC
Unified Forwarding Table to dynamically allocate the L2/L3 tables
Major Components
ASIC
Broadcom StrataXGS Trident2
x86 CPU Module
CPU
Intel Atom Processors
Memory
4GB DDR3/ECC
Storage
32G SSD
CPU
CPU
NXP PPC P2020
Memory
2GB DDR3/ECC
Flash
128MB
Storage
8GB Micro SD
Mechanical
Dimension (HxWxD)
44x435x483mm
Weight
P2020: 9.93kg/ 21.87lbs (NET)
Rangeley: 9.82kg/ 21.63lbs (NET)
Environmental Specifications
Operating temperature
0~45℃
Operating humidity
90% maximum relative humidity
Electrical
Power requirement
100~240VAC, 50/60Hz
Power consumption
200 watts (L2 256B line rate; 10G-SR optics, 100% fan duty)
Safety
Safety
UL, cUL, CB, CCC
EMC
EMC
CE, FCC, VCCI, CCC
RoHS
RoHS
Reduction of Hazardous Substances (RoHS) 6
90 Day Seller Warranty! Unless Stated Otherwise in Listing. For Extended Warranty Please Call: 877-UNIX-123
