Micas

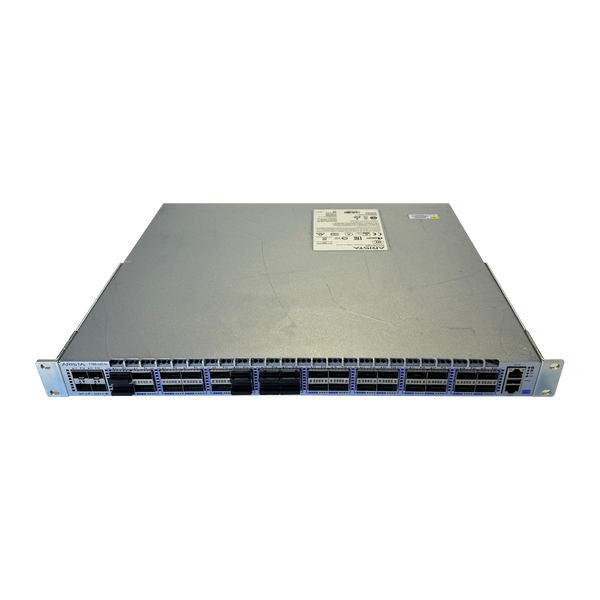

M2-W6510-32C Data Center Switch 32 × QSFP28 100/40GbE Ports
Product Code:
M2-W6510-32C
Availability:
Usually ships within three business days
Shipping:
$40.00 (Fixed Shipping Cost)
Condition:
Refurbished
Brand:
Micas Network
Type:
Network Switch
Model:
RA-B6510-32C-R
$7,000.00
PRODUCT DESCRIPTION
The M2-W6510-32C is a superior switch designed for carrier/enterprise aggregation, data center top-of-rack/spine networks. It boasts 32 high-speed ports that support 100 GbE QSFP28 and provides 1 management port, 1 console port, 1 USB port, and 5 fan slots with 4+1 fan redundancy. The device operates effortlessly within a temperature range of 0°C to 40°C and supports both forward and reversed airflow. M2-W6510-32C uses the advanced BCM56870 chip, which delivers an astonishing maximum switching bandwidth of up to 6.4 Tbps (full duplex).
First-class Performance
• 32 × QSFP28 100/40GbE Ports
• Up to 6.4 Tbps (full duplex)
• Up to 2003.4 Mpps
Resilient Configuration
• Broadcom BCM56870 (Trident 3)
• Intel Xeon D-1527 Processor (Formerly Broadwell DE)
• System memory 8GB DRAM(up to 32GB)
• System storage ≥240GB
Data Center Oriented Design
• Typical power of under 4W per 100GbE port
• Over 94% efficient power supplies
• Tool less maintenance and simple installation
Cloud Networking Ready
• Shared 32MB Buffer with burst absorption
• Up to 288K MAC and 168K Host entries
• Over 324K IPv4 Routes
• Over 168K IPv6 Routes
* The above table is the maximum capacity that the
switching chip can provide.
Fully-loaded Software Functions
• BGP, route policies, ARP in host routing, load balance
based on LAG/ECMP, Interface ACL, Global ACL, etc.
OFFICIAL M2-W6510-32C SPECIFICATIONS
| Feature | Technical specification |
|---|---|
| Switch Model | M2-W6510-32C |
| Ports | 32×100GbE QSFP28 |
| Max 100GbE Ports | 32 |
| Max 50GbE Ports | 64 |
| Max 40GbE Ports | 32 |
| Max 25GbE Ports | 128 |
| Max 10GbE Ports | 128 |
| Max 1GbE Ports | - |
| MGMT Port | 1 |
| Console port | 1 |
| USB Port | 1 |
| Switching Capacity | 6.4Tbps |
| Packets/Second | 2003.4Mpps |
| CPU | Intel Xeon D-1527 |
| System Memory | 8GB (Up to 32GB) |
| System Storage | 240GB |
| BMC Option | AST2520 |
| Switch ASIC | Broadcom BCM56870 (Trident3) |
| Packet Buffer | 32MB |
| Temperature Alarm | Supports temperature alarm and overtemperature protection |
| Power Supplies | 2 (1+1 redundant, hot-swappable) |
| Fans | 5 (4+1 redundant, hot-swappable) |
| OS | SONiC |
| Airflow Options | Standard* and reversed** |
| Max/Typical Power Consumption | airflow 450W/270W |
| Dimensions (W x D x H) | 17.40in × 22.04 in× 1.73 in. 442 mm x 560 mm x 44 mm, 1RU |
| Weight (with all modules) | 31.97 lbs (14.5KG) |
| * Standard：Front to rear **Reversed：Rear to front | |
| Network Operating System | |
| This product supports SONiC, a leading open networking operating system. Micas Networks provides various SONiC offerings, including customization and intergration services. | |
| Power Supply | |
| Model | PA550II-F/R |
| Input Connector | IEC 320-C14 |
| Output Power | 550 W |
| Input Voltage | 100-240 VAC |
| Typical Input Current | 7.2A ~ 3.5A |
| Frequency | 50-60 Hz |
| Effciency | 94% Platinum |
| Standard Compliance | |
| EMC Standards | FCC CFR Title 47, Part 15, Subpart B ICES-003 Issue 7 |
| Safety | EN 62368-1 EN BS 62368-1 IEC 62368-1 |
| Certifications | FCC; IC; CTUVus; CE; CB; ANATEL; UKCA; VOC |
| European Union Directives | Low Voltage Directive 2014/35/EU EMC Directive 2014/30/EU Directive 2012/19/EU Directive 2011/65/EU |
| Environmental | |
| Operating Temperature | 32 to 104° F (0 to 40°C) |
| Storage Temperature | -40 to 158° F (-40 to 70°C) |
| Operating Humidity | 10% to 90% RH（Non-condensing） |
| Altitude (Operating) | 0-16,404.20 ft. (0-5,000 m) |
| Order Information | |
| Switch | |
| Model | |
| M2-W6510-32C-FA | 32×100G QSFP28, 2×AC power modules, 5×fan modules, front-to-rear airflow |
| M2-W6510-32C-RA | 32×100G QSFP28, 2×AC power modules, 5×fan modules, rear-to-front airflow. |
| Fan and Power Supply | |
| Model | |
| M1HFAN III-F | Fan module for front-to-rear airflow. |
| M1HFAN III-R | Fan module for rear-to-front airflow |
| PA550II-F | AC power supply module, front-to-rear airflow |
| PA550II-R | AC power supply module, rear-to-front airflow. |
