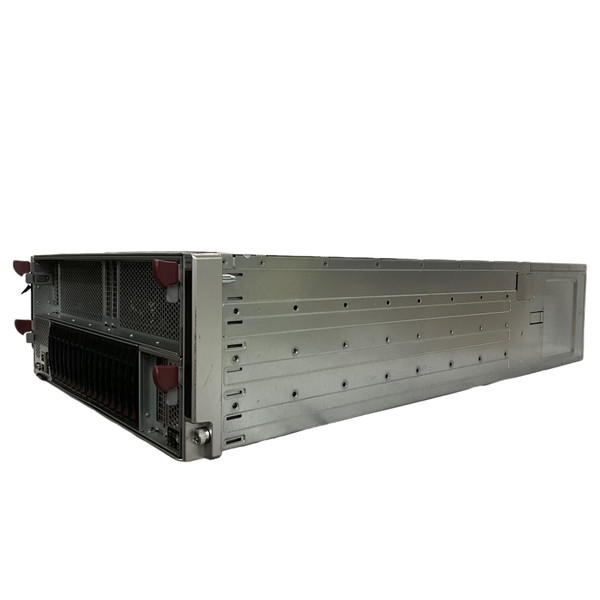

Supermicro Server 4U X10DGO-T 16-Bay 2.5" Storage Chassis

Name: Supermicro Server 4U X10DGO-T 16-Bay 2.5" Storage Chassis
Brand: Supermicro
SKU: 406008-X10DGO-T SYS-4028GR-TXRT
Availability: OutOfStock

No reviews yet

Product Code: 406008-X10DGO-T SYS-4028GR-TXRT

Availability: Usually ships within three business days

Condition: Refurbished

Brand: Supermicro

# of Bay: 16

Memory Capacity: 1TB

Hard Drive / SSD: 1.92TB SSD

Power Supply: 4x PSU

GPU: 8x P100 16GB

$13,750.00 + Freight Shipping Quote, Call us at 877-864-9123

PRODUCT DESCRIPTION

We also have this machine available with the SXM2 share memory cross connect. It is a higher bandwidth between GPUs than PCIe. The NVlink/ NV switch gives 300GB/second bandwidth to each GPU for 2.4 TerraBYTE/second bandwidth.

CONFIGURATION

CPU	2x E5-2690V4 CPUs 2.6 Ghz 28x cores 56x Threads
Memory	1TB
Hard Drive	2x 1.92TB SSD
GPU	8x P100 16 GB GPU P100 SXM2 NVlink GPU

Secondary Chassis/Motherboard Specs

Server Chassis/Case	SuperServer 4028GR-TXRT
Motherboard	X10DGO-T
Front Bays	16x 2.5" SATA
Caddies	16x 2.5" Supermicro Caddies
PSU Slots	4
Power	4
Mounting	Rail Kit
Warranty	1 Year Seller Warranty

OFFICIAL SuperServer 4028GR-TXRT SPECIFICATIONS

SYS-4028GR-TXRT	SuperServer 4028GR-TXRT (Black)
Motherboard	Super X10DGO-T 1 x IPMB connector
CPU	Intel® Xeon® processor E5-2600 v4/ v3 family (up to 145W TDP) Dual Socket R3 (LGA 2011)
Cores / Cache	Up to 22 Cores / Up to 55MB Cache
System Bus	QPI up to 9.6 GT/s
Note	BIOS version 2.0 or above is required
GPU	8 NVIDIA® Tesla® P100 SXM2 NVIDIA® NVLINK™ up to 80GB/s
Memory Capacity	24x 288-pin DDR4 DIMM slots Up to 3TB^† ECC 3DS LRDIMM, 2TB ECC RDIMM
Memory Type	2400^†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	RDIMM: 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors
Chipset	Intel® C612 chipset
SATA	SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Network Controllers	Dual Port 10GbE with Intel X540 Ethernet Controller Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics	ASPEED AST2400 BMC
SATA	10 SATA3 (6Gbps) ports
LAN	2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 ports
Video	1 VGA Connector
Serial Port	1 Serial header
BIOS Type	128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 USB Keyboard support SMBIOS 2.7.1 UEFI
Form Factor	4U Rackmountable Rackmount Kit (MCP-290-31401-0N)
Model	CSE-R422BG-2
Height	7.0" (178mm)
Width	17.6" (447mm)
Depth	31.7" (805mm)
Weight	Net Weight: 80 lbs (36.2 kg) Gross Weight: 135 lbs (61.2 kg)
Available Colors	Black
Hot-swap	16 Hot-swap 2.5" SATA/SAS drive bays
PCI-Express	4 PCI-E 3.0 x16 (low-profile) slots 2 PCI-E 3.0 x8 slots
M.2	M.2 Interface: PCI-E 3.0 x4 Form Factor: 2260, 2280, 22110
Fans	8x 92mm Cooling Fans
Shrouds	1 Air Shroud (MCP-310-41808-0B)
Power Supply	2200W Redundant Titanium Level Power Supplies with PMBus
Total Output Power	1200W/1800W/1980W/2090W/2200W (UL/cUL only)
Dimension (W x H x L)	106.5 x 82.4 x 203.5 mm
Input	1200W: 100-127 Vac / 14-11 A / 50-60 Hz 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz 1980W: 220-230 Vac / 10-9.5 A / 50-60 Hz 2090W: 230-240 Vac / 10-9.8 A / 50-60 Hz 2200W: 220-240 Vac / 12-11 A / 50-60 Hz (UL/cUL only) 2090W: 180-220 Vac / 14-11 A / 50-60 Hz (UL/cUL only) 2090W: 230-240 Vdc / 10-9.8 A (CCC only)
+12V	Max: 100A / Min: 0A (1200W) Max: 150A / Min: 0A (1800W) Max: 165A / Min: 0A (1980W) Max: 174.17A / Min: 0A (2090W) Max: 183.3A / Min: 0A (2200W) Max: 174.17A / Min: 0A (2090W)
12Vsb	Max: 2A / Min: 0A
Output Type	Gold Finger (connector on M/P)
Certification	Titanium Level
CPU	Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages. 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V
FAN	4-pin fan headers with tachometer status monitoring Low noise fan speed control mode
Temperature	Monitoring for CPU and system environment Thermal Control for 8 fan connectors
Other Features	Chassis intrusion detection
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

SKU: 406008-X10DGO-T SYS-4028GR-TXRT

updated JAA 06/18/2025
