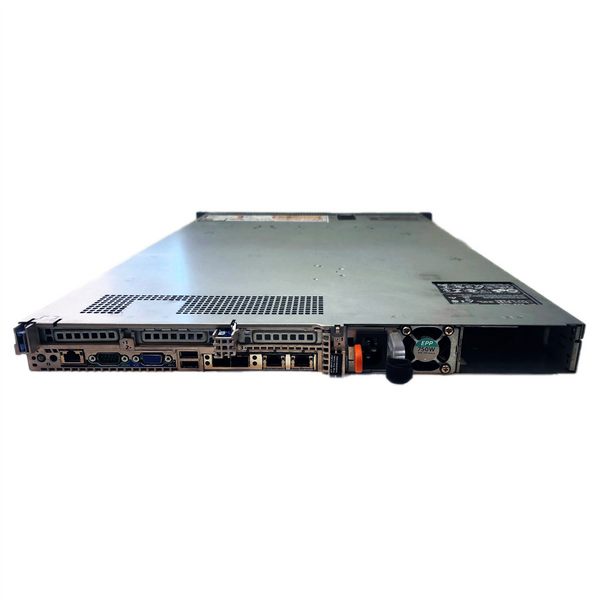

Dell PowerEdge R630 8Bay 2.5" Server

No reviews yet
Product Code: 1U-R630-8BS-1xPSU
UPC: 818216169097
Availability: Usually ships within 3-5 business days
Shipping: Free Shipping
Condition: Refurbished
Brand: Dell
CPU/Memory: Custom Selection
Controller: Onboard SATA
Motherboard: R630
Front Bays: 8 Bay 2.5"
Power: 1x Power supply
Mounting: Custom Selection
$125.00 - $589.00
Choose Options:
  • Dell 1U Type A7 Rail KIt
Hurry! Only left
Share:

Fill out the form below, and we will email you with a custom quote within 24 hours.

Request Quote Form

100% Guaranteed

100% Guaranteed

Ships From USA

Ships From USA

3 Months Warranty

3 Months Warranty

Hassle Free Return

Hassle Free Return

Product Description

The Dell PowerEdge R630 server, tailored for small to medium businesses, features a compact 1U design with two sockets. It utilizes DDR4 memory for enhanced storage speed and accommodates small 2.5" drives, delivering impressive storage capacity within its compact chassis. Offering computing power typically found in 2U servers, the compact PowerEdge R630, a two-socket 1U rack server, presents a compelling solution for virtualization environments, extensive business applications, or transactional databases.

Power Edge R630

  • Latest Intel Xeon E5-2600 v4 processors offer up to 22 powerful cores.
  • Enjoy up to 24 high-capacity DDR4 memory DIMMs
  • Up to 24 1.8" SSDs (23TB)
  • Get up to 3 PCIe 3.0 expansion slots
  • Up to 4 Express Flash NVMe PCIe SSDs

Configuration

CPU Configuration Options
Memory Configuration Options
Hard Drives Configuration Options
Controllers Onboard SATA
OB NIC 2x 1Gb 2x 10Gb BASE-T (RJ45)

Secondary Chassis/Motherboard Specs

Server Chassis/Case 1U-R630-8BS-1xPSU
Motherboard R630
Backplane N/A
Motherboard PCI slots 3 Slot
Front Bays 8 Bay 2.5"
Rear Bays 0
Caddies Included Optional
PSU Slots 2 PSU Slots
Power 1x Power supply
Mounting Optional
Warranty 90 day Seller Warranty








SKU: 429803 | 429804 | 501108 | 411107 | 501208 | 430302 | 430303 | 503826 | 503823 | 502206 | 426402 | 501207 | 503005 | 503006 | 503007 | 503825
JAA 04/25/2024

Product Technical Specs Sheets

Feature Technical specification
Form factor 1U rack server
Dimensions 24 x 1.8" and 10 x 2.5" drive configuration: H: 4.28 cm (1.68 in), W: 48.23 cm (18.98 in), D: 75.51 cm (29.72 in) 8 x 2.5" drive configuration: H: 4.28 cm (1.68 in), W: 48.23 cm (18.98 in), D: 70.05 cm (27.57 in)
Processor Intel® Xeon® processor E5-2600 v4 product family
Processor sockets 2
Cache 2.5MB per core; core options: 4, 6, 8, 10, 12, 16, 18, 22
Chipset Intel C610 series chipset
Memory Up to 1.5TB (24 DIMM slots): 4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s
I/O slots Up to 3 x PCIe 3.0 slots plus dedicated PERC slot
RAID controllers Internal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P External HBAs (RAID): PERC H830 External HBAs (non-RAID): 12Gbps SAS HBA
Drive bays Internal hard drive bay and hot-plug backplane: Up to 24 x 1.8" SATA SSD Up to 10 x 2.5" HDD: SAS, SATA, nearline SAS SSD: SAS, SATA, Up to 4 NVMe PCIe Up to 8 x 2.5" HDD: SAS, SATA, nearline SAS SSD: SAS, SATA
Maximum internal storage HDD: SAS, SATA, nearline SAS SSD: SAS, SATA, NVMe PCIe 24 x 1.8" SSD – up to 23TB via 0.96 TB hot-plug SATA SSD 10 x 2.5" – up to 18TB via 1.8TB hot-plug SAS HDD 8 x 2.5" – up to 14TB via 1.8TB hot-plug SAS HDD
Embedded NIC 4 x 1Gb, 2 x 1Gb + 2 x 10Gb, 4 x 10Gb
Power supplies Titanium efficiency 750W AC power supply; 1100W DC power supply; Platinum efficiency 495W, 750W, 1100W
Availability ECC memory, hot-plug hard drives, hot-plug redundant cooling, hot-plug redundant power, internal dual SD module, single device data correction (SDDC), spare rank, support for high availability clustering and virtualization, proactive systems management alerts
Systems management Systems management: IPMI 2.0 compliant; Dell OpenManage Essentials; Dell OpenManage Mobile; Dell OpenManage Power Center Remote management: iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade) iDRAC Quick Sync Dell OpenManage Integrations: • Dell OpenManage Integration Suite for Microsoft® System Center • Dell OpenManage Integration for VMware® vCenterTM Dell OpenManage Connections: • HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management • Dell OpenManage Plug-in for Oracle® Database Manager
Rack support ReadyRailsTM II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm.
Supported operating systems Microsoft Windows Server® 2008/2012 SP2, x86/x64 (x64 includes Hyper-V®) Microsoft Windows Server 2008/2012 R2, x64 (includes Hyper-V) Novell® SUSE® Linux Enterprise Server Red Hat® Enterprise Linux Optional embedded hypervisors: Citrix® XenServer® VMware vSphere® ESXiTM.
OEM-ready version available From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you.
Recommended support Contact your UNIXSurplus representative today for more information..
